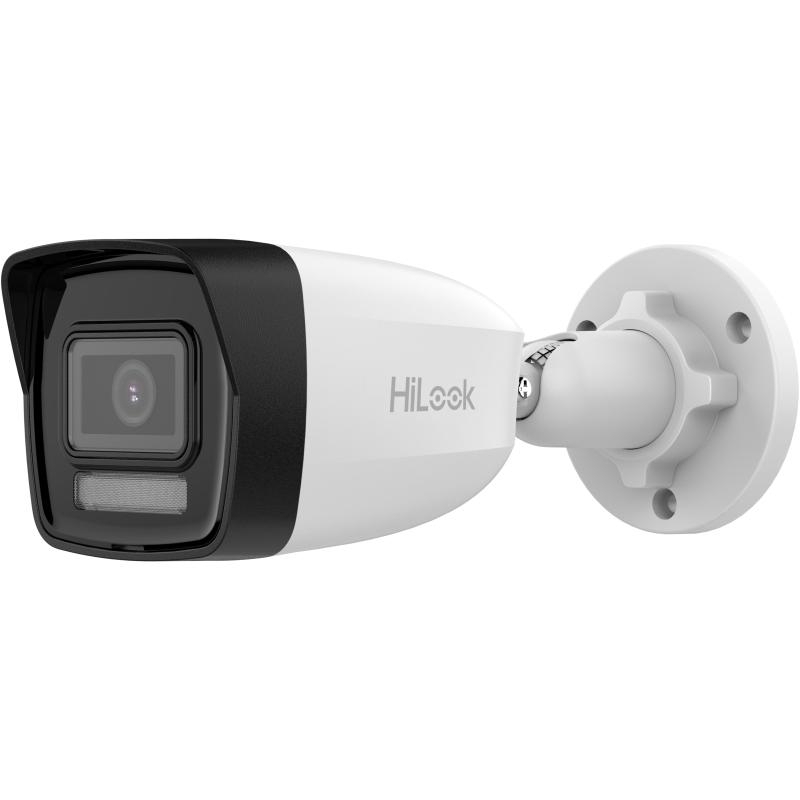

Видеокамера IPC-B120HA-LUC

Specification
Camera
Image Sensor 1/2.9" Progressive Scan CMOS
Max. Resolution 1920 × 1080
Shutter Time 1/3 s to 1/100,000 s
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Lens
Lens Type Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV 2.8 mm, horizontal FOV 103°, vertical FOV 56°, diagonal FOV 121°
4 mm, horizontal FOV 83°, vertical FOV 44°, diagonal FOV 99°
Lens Mount M12
Iris Type Fixed
Aperture F1.6
DORI
DORI 2.8 mm, D: 45 m, O: 18 m, R: 9 m, I: 4 m
4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m
Illuminator
Supplement Light Type IR,White Light
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Video
Main Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Video Compression Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile,Main Profile,High Profile
H.265 Type Main Profile
Bit Rate Control CBR,VBR
Region of Interest (ROI) 1 fixed region for main stream
Audio
Audio Type Mono sound
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate 64 Kbps (G.711 ulaw/G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps
(MP2L2)/16 to 64 Kbps (AAC-LC)
Network
Security
Password protection, complicated password, watermark, basic and digest
authentication for HTTP, WSSE and digest authentication for Open Network Video
Interface, security audit log, host authentication (MAC address)
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile T),ISAPI,SDK
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
User/Host Up to 32 users
3 user levels: administrator, operator, and user
Client iVMS-4200,HiLookVision
Web Browser Plug-in required live view: IE 10, IE 11,
Local service: Chrome 57.0+, Firefox 52.0+
Wide Dynamic Range (WDR) Digital WDR
SNR ≥ 52 dB
Day/Night Switch Day,Night,Auto,Schedule
Image Enhancement BLC,HLC,3D DNR
Image Settings Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable
by client software or web browser
Privacy Mask 4 programmable polygon privacy masks
Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Built-in Microphone Yes

Event
Basic Event Motion detection (support alarm triggering by specified target types (human and
vehicle)),video tampering alarm,exception
Linkage Upload to FTP,send email,notify surveillance center,trigger capture

General
Power
12 VDC ± 25%, 0.4 A, max. 5 W,Ø 5.5 mm coaxial power plug,reverse polarity
protection,
PoE: IEEE 802.3af, Class 3, max. 6.5 W
Material Metal & Plastic
Dimension 184.1 mm × 66 mm × 69.1 mm (7.3" × 2.6" × 2.7")
Package Dimension 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
Weight Approx. 265 g (0.6 lb.)
With Package Weight Approx. 495 g (1.1 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating
Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language English, Ukrainian
General Function Heartbeat,anti-banding,mirror,password protection,password reset via email
Approval
EMC
FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN
50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7
Safety CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013

Typical Application
Hikvision products are classified into three levels according to their anti -corrosion performance. Refer to the following
description to choose for your using environment.
This model has NO SPECIFIC PROTECTION.
Level Description
Top-level protection
Hikvision products at this level are equipped for use in
areas where professional anti -corrosion protection is a
must. Typical application scenarios include coastlines,
docks, chemical plants, and more.
Moderate protection
Hikvision products at this level are equipped for use in
areas with moderate anti -corrosion demands. Typical
application scenarios include coastal areas about 2
kilometers (1.24 miles) away from coastlines, as well as
areas affected by acid rain.
No specific protection Hikvision products at this level are equipped for use in
areas where no specific anti -corrosion protection is needed.
